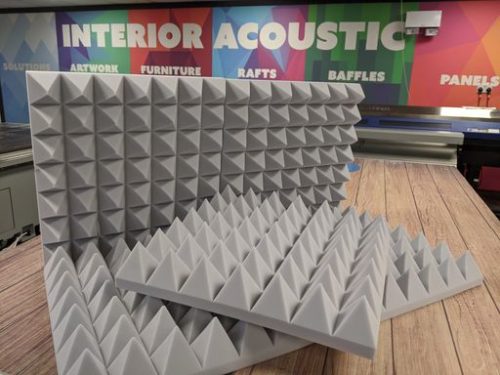

MTech Pyramid tiles are manufactured using BASOTECT G melamine foam. Boasting high noise absorption capacities and high fire prevention qualities. Tiles can be fully customized to your specification and are all manufactured inhouse on our CNC cutting machines.
MTech Pyramids are well suited for cases where high fire prevention qualities and excellent sound absorption are required. Thanks to its low weight in combination with a good stability MTech Pyramids can also be used as self-supporting sound absorbing element.
Some possible employment fields are, for example:
| Composition | MTech Pryamid |
| Sound Absorption | Class A |
| Thickness | 25mm Base / 75mm Rise |
| Fire Specification | DIN EN 13501-1:2010 C – s2, d0 |
| OKEO TEX | Standard 100 |
| Compressive Strength | EN ISO 3386-1 kPa > 9 |
| Elongation at Break | EN ISO 1798 kPa > 130 |
| Weight | 9kg m3 |
Standard Size
| 525mm x 525mm x 100mm | Not the size you need? Not to worry, we can fully customize the design to your requirement. |
